Overview of Vacuum Chucking for Wood Turners

My long article on vacuum pumps and chucks PDF (Adobe Acrobat)   or  MS Word

How to hook up a vacuum system

see also the meters and gauges page

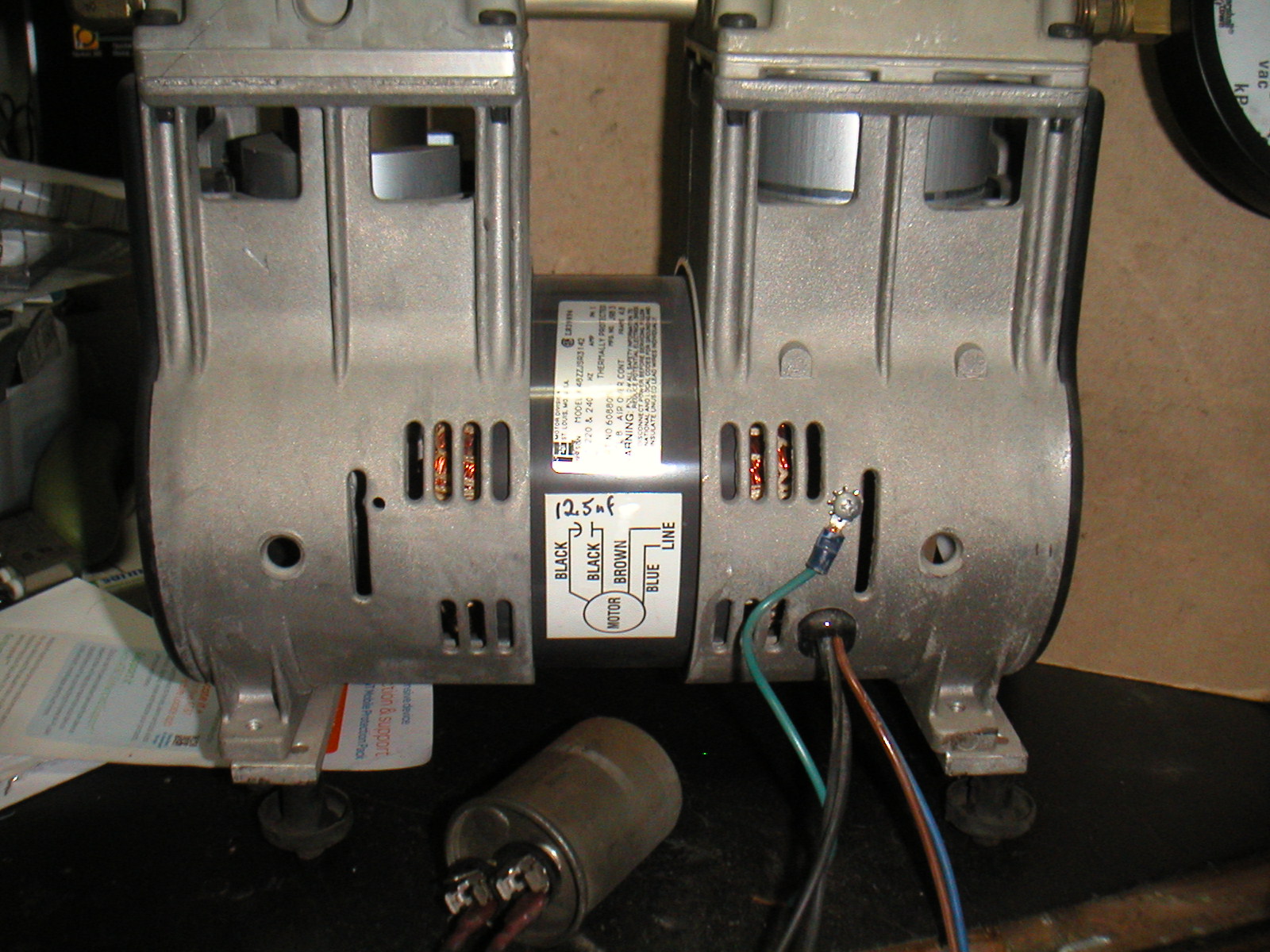

Thomas 2750TH152/48-xxx Pump, 220/240V 2.5 amp motor, mearued 29 inches of vacuum - good condition.  These are two stage pumps, with the two cylinders in series for maximum vacuum. I have two of these - both with excellent vacuum - this would be a good pump if you need maximum vacuum to hold small items.  Tested 12/1/13

The Thomas site data on this pump is here and the data sheet is here
Thomas 2750 FEATURES
Two cylinder, in-line
Oil-less, non-lube piston and cylinder
Permanently lubricated bearings
Stainless steel valves with Patented recessed inlet valve
Head design allows easily replaced piston seal
Lightweight die cast aluminum components
Thin wall, hard-coated aluminum cylinder for maximum heat transfer
Twin fans provide cooling air through and around motor and cylinders
115 Volt, UL recognized motor and thermal protector
Balanced for smooth, low vibration operation
Field service capability
Intake filter
Capacitor
All wetted aluminum parts treated for corrosion protection from moisture
CE approved 220-240 volt 50 hertz models.
$95 plus shipping

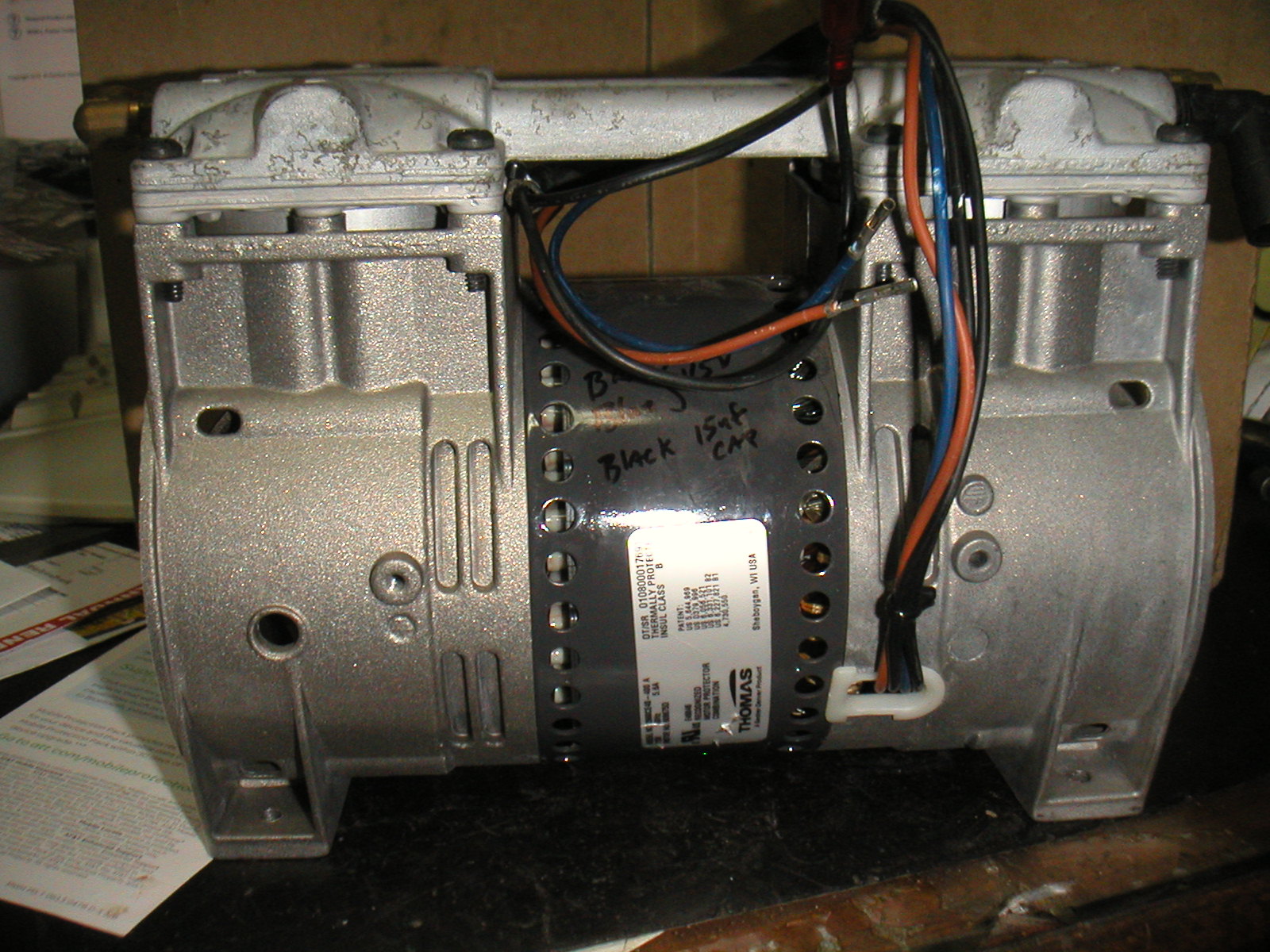

Thomas 2660CE/48  Pump, 115V 5.6 amp motor, , mearued 23 inches of vacuum - good condition.  Tested 12/1/13

The Thomas site data on this pump is here and the data sheet is here
Thomas 2660CE/48


$75 plus shipping.

Model Number

2660E48XNTLSXX

Product Family / Type

2660 Series

Operating Mode

Vacuum

Medium

Gas

Vacuum Flow Rate

4.6 cfm

130.3 l/min

Vacuum Continuous

27.1 in.Hg

-920 mbar

Max Intermittent Vacuum

27.1 in.Hg

-920 mbar

Max Vacuum Restart

-

-

Energy Supply

AC

Voltage

115V

Frequency

60/1Hz

Motor Rating



608.0 W

Current Drawn

5.3 A

Motor Type

Permanent Split Capacitor

Motor Protection Class

B

Speed

1675 rpm

Weight

17.60 lb

8.00 kg

Ambient Temperature, min.

50 F

10 C

Ambient Temperature, max.

104 F

40 C

Average Noise Level

-

Stroke

0.48 in

12.2 mm



Becker Type D-63A2P, looks new, includes a silencer (visible in photo) and a vacuum regulator built in (hidden mostly by the silencer)

click to enlarge

3 phase, 220V, see link below for static inverter

$165 plus shipping

http://homemetalshopclub.org/projects/phconv/phconv.html


GAST Model 0211-V87A-G8C

1/6 hp vane pump, tested good, 21 in vacuum

the manual for this pump is on line here 0211 at the GAST site though the exact model number doesn't appear.  1.3 CFM open flow.



110VAC, 60 hz

$125 plus shipping



Gast Model 2067-V108 carbon vane pump
 http://gastmfg.com/products/compressors-and-pumps/rotary-vanes-separate-drive/2067#models-anchor-section
Power 1 hp ( 0.75 kW )
Max Flow (50 Hz) 14.0 cfm ( 24.0 m3/h )
Max Flow (60 Hz) 17.0 cfm ( 29.0 m3/h ) x Pressure (50 Hz) 15 psi ( 1 bar )

Max Pressure (60 Hz) 15 psi ( 1.0 bar )
Max Vacuum (60 Hz) 28.0 in-Hg (65.0 mbar abs )
Weight 55 lbs ( 25 kg )
Min Temperature 33.8 F ( 1 C )



Pump is tested and working, without trying to get a good seal, I measured 25" of vacuum. Inlet filter with glass jar (not shown) is included, works on 110/220 single phase.  Motor is Doerr brand.

bullet
Gst 2067-V108 with motor
note, photo shows pump apparently standing on end, that's not how you use it, it is just the odd perspective of this particular photo.
$285 plus shipping



various vacuum gauges, various sizes, mostly used $3 to $15 each, no charge for shipping if bought with a pump.

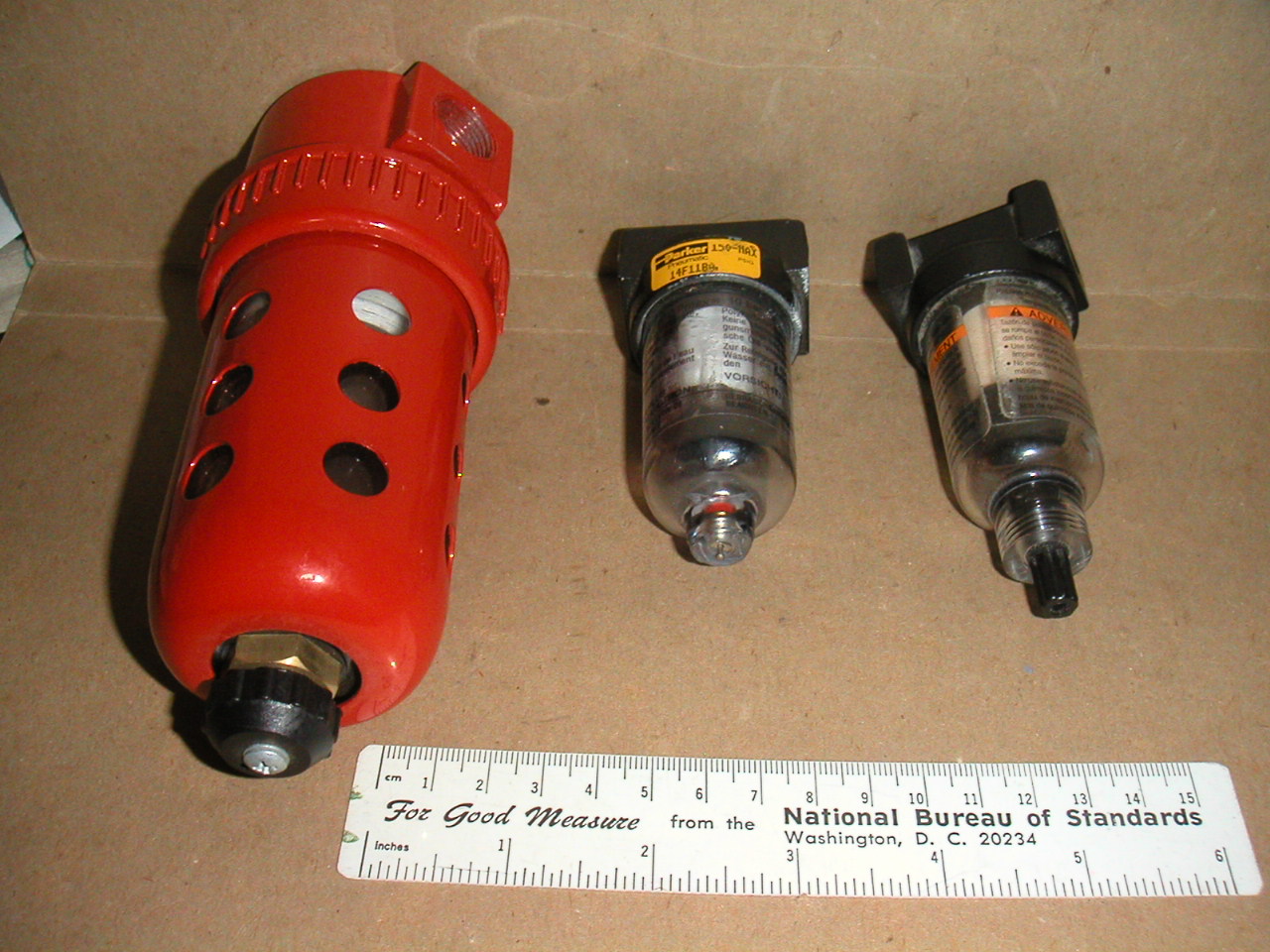

Filters, suitable for use with all the smaller pumps, the red ones are all sold now.
Do not run your pump without a filter.  Some new, some used, all good condition and ready to use.
$12, no charge for shipping if bought with a pump.





click on diagram to the left to see my recommended connection for vacuum pump to your lathe.
